Plant List

  • CNC Milling

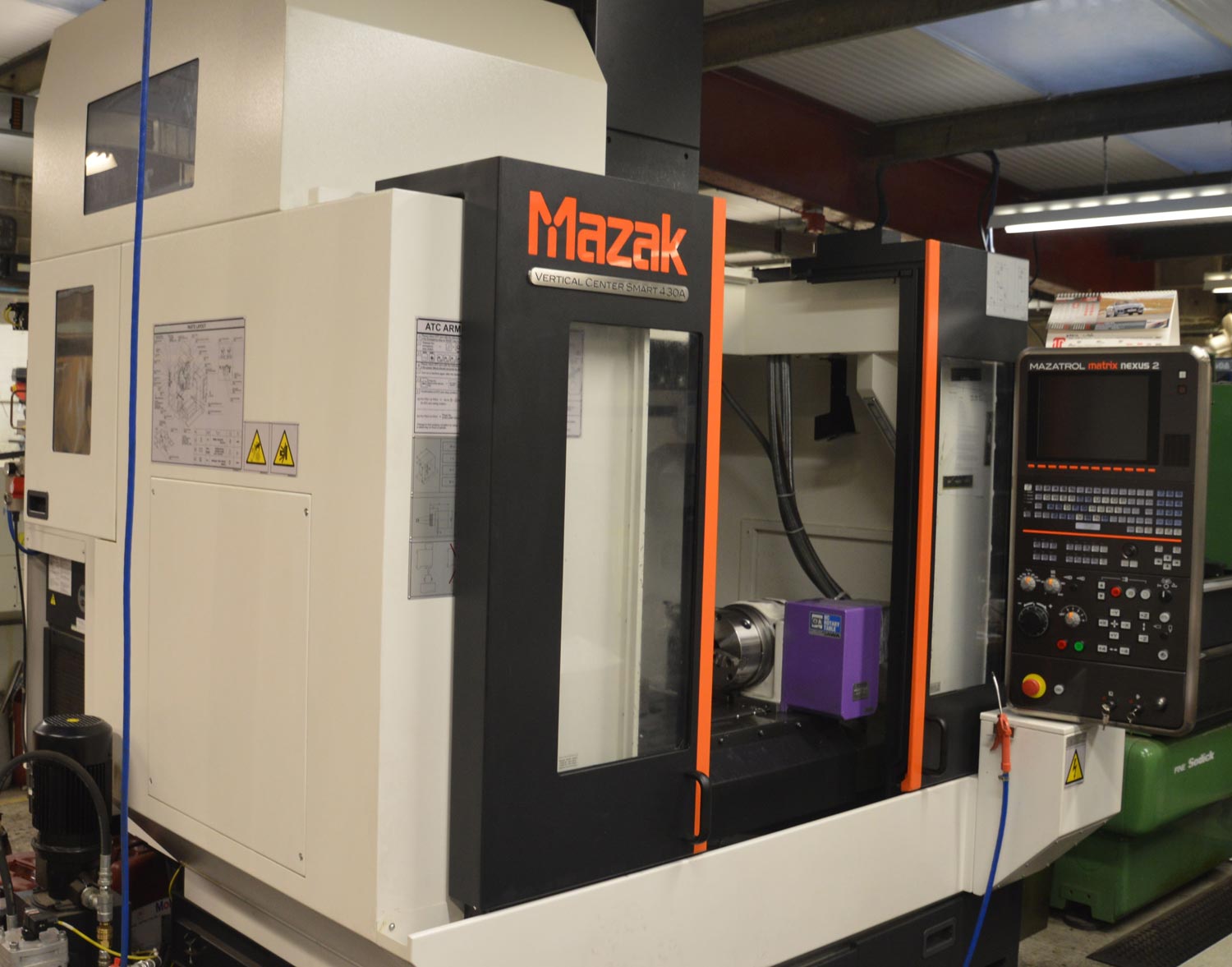

    1 off Mazak VCS430A with IV Axis capability (Kitagawa MR200), 30 slot automatic tool changer. Renishaw OMP60 probing system, maximum spindle speed
    12,000rpm, working cube capacity 560 x 430 x 550mm.



    1 off Hardinge GX600 with IV Axis capability, 20 slot automatic tool changer, Renishaw probing system, maximum spindle speed 8,000 rpm, working cube capacity 600 x 540 x 540mm.

    1 off Haas VF3 with IV Axis capability, 20 slot automatic tool changer, Renishaw probing system, maximum spindle speed 8,000 rpm, working cube capacity 600 x 540 x 540mm.

    1 off Cincinnati Arrow 500 II with IV Axis capability, 20 slot automatic tool changer, Renishaw probing system, working cube capacity 510 x 510 x 510mm.

  • CNC Turning

    2 off Hardinge Super-Precision Quest GT27SP Gang Tool Lathe, 12 tool capacity, maximum 8,000 rpm, with achievable surface finishes of 8 micro-inch, part roundness of .000015 inches, and a continuous machining accuracy of .0002” inches.



    2 off Hardinge Talent 8/52 Turret Lathe, 12 tool stations, 5,000 rpm, fully programmable tailstock, automatic parts catcher.

    1 off Hardinge Talent 8/52 Turret Lathe, 12 tool stations, 5,000 rpm, fully programmable tailstock.

    1 off Hardinge Talent GS200 Turret Lathe, 12 tool stations, 5,000 rpm, fully programmable tailstock, automatic parts catcher.

    1 off Hardinge Talent GS250 Turret Lathe, 12 tool stations, 3,500 rpm, fully programmable tailstock, automatic parts catcher.

    1 off Colchester Harrison Alpha 1400XS Lathe, 2,700 rpm, Max Machining Diameter 585mm, Max Turning Length 1250mm.

  • Electro Discharge Machining

    1 off Sodic A320D Wire CNC EDM, Auto Wire Threading, working cube capacity 320 x 205 x 175 mm. On Line Programmable.



    1 off Ocean River 600 CNC EDM. Drill, 4 axis 0.30 to 4.0mm Dia x 150mm depth, table size 600 x 400 x 400mm, working cube capacity 600 x 400 x 400mm.

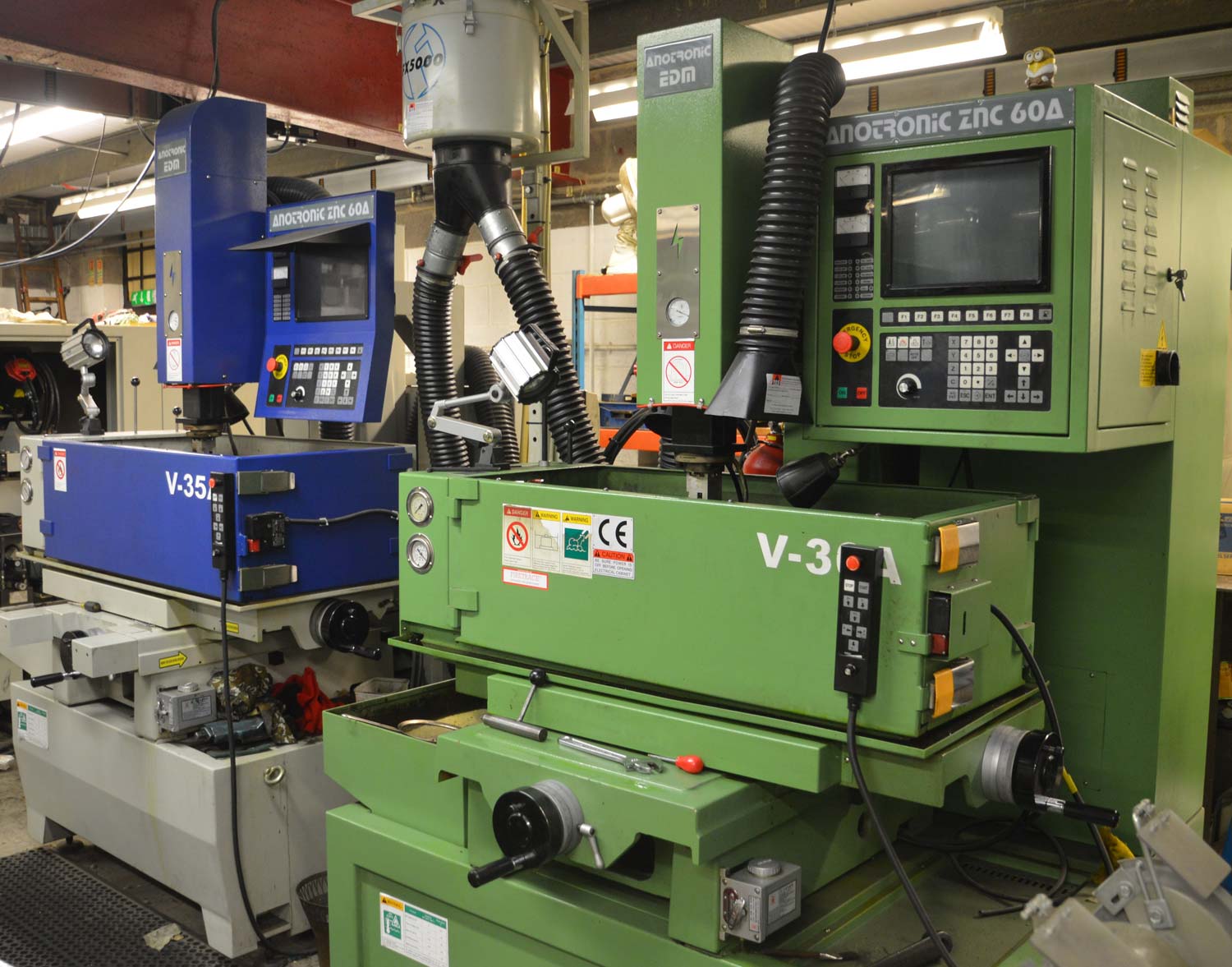

    1 off Anotronic V30A EDM Spark Eroder, reverse spark facility, digital read out, working cube capacity 300 x 200 x 200mm.

    1 off Anotronic V35 EDM Spark Eroder, reverse spark facility, digital read out, working cube capacity 230 x 160 x 300mm.

  • Cad Cam Software

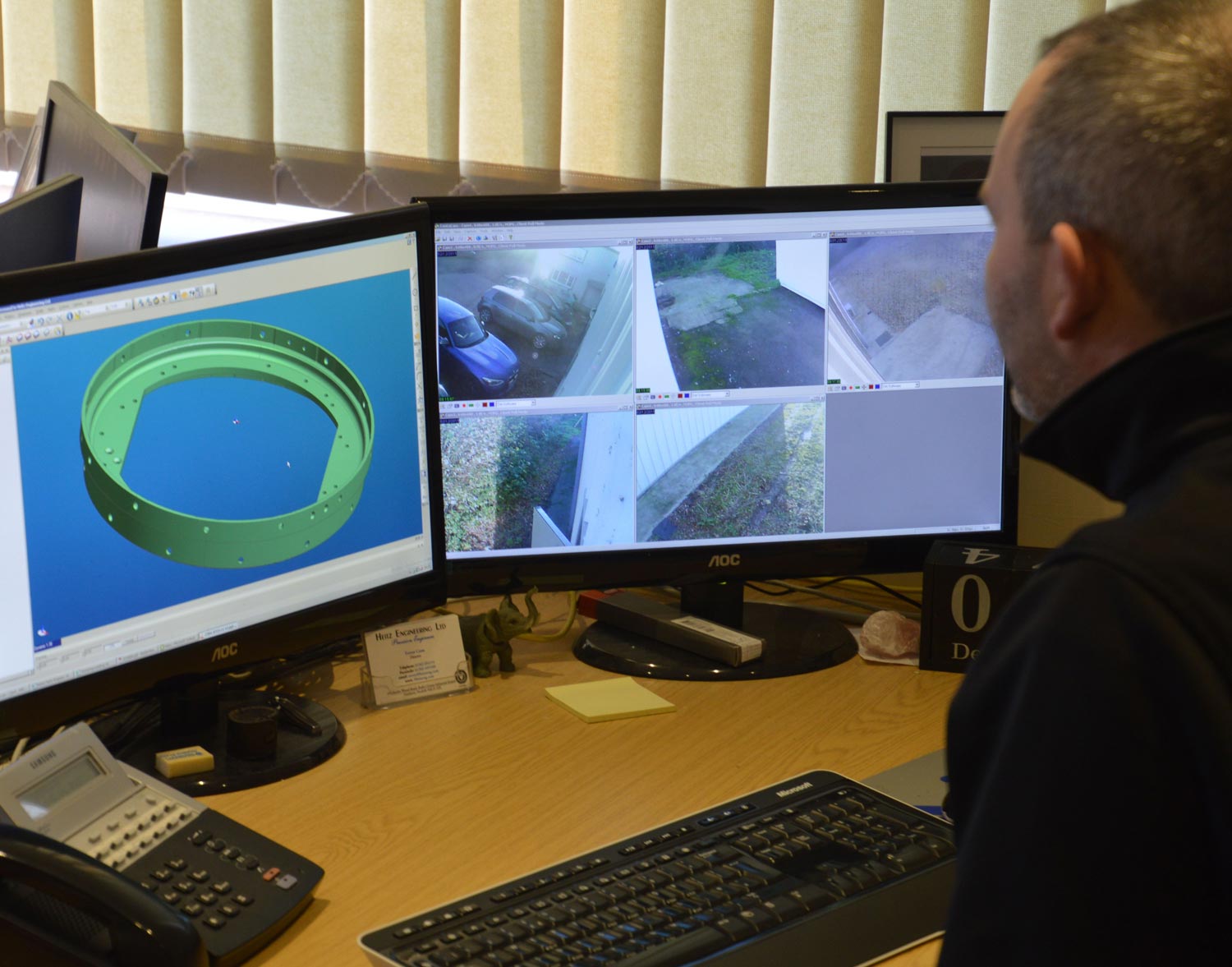

    1 Seat: EdgeCam off line programming, all major file types can be received, ability to process 2D drawings or 3D models electronically, in a variety of different formats including, Parasolid, AutoCAD, DXF, DWG, Inventor, SolidWorks, SolidEdge, STL,. STEP, and Pro-E.



    1 Seat: OneCNC off line programming, all major file types can be received, ability to process 2D drawings or 3D models electronically, in a variety of different formats including, Parasolid, AutoCAD, DXF, DWG, Inventor, SolidWorks, SolidEdge, STL,. STEP, and Pro-E.

  • Manual Machining Capabilities

    1 off Bridgeport knee mill, cube capacity 400 x 250 x 250 mm, with digital readout.



    2 off centre lathes, 1 with digital readout.

    Various equipment including:
    Band Saw
    Horizontal & Vertical
    Drill Benches
    Tapping Machines
    Honing and Burnishing
    Barrel Deburring
    Polishing Heads
    Toggle and Fly Presses
    Ultrasonic Cleaning Tanks.

  • Inspection Department

    Fully temperature controlled office.

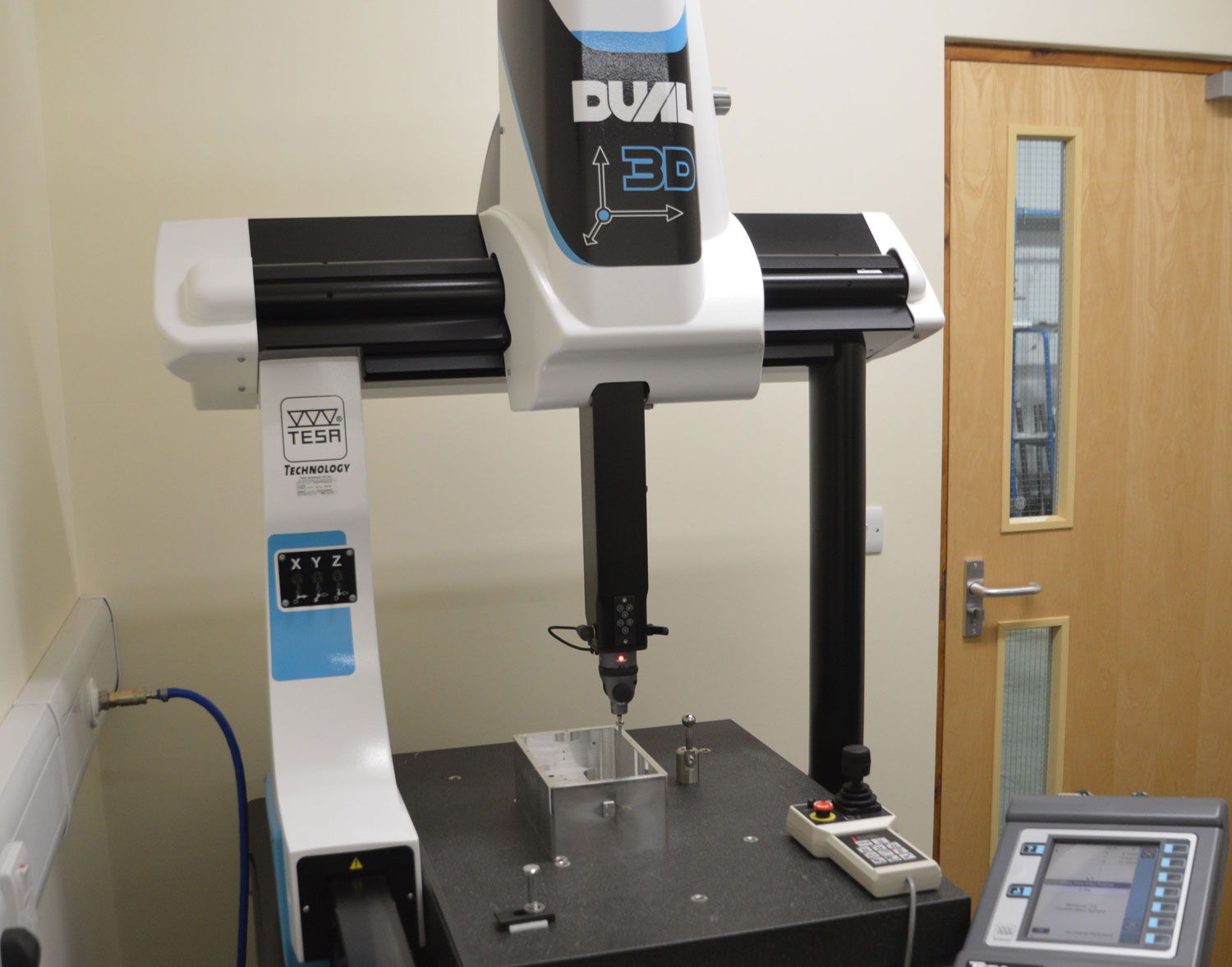

    TESA MH3D Dual TSI CMM (Programmable).

    TESA StatExpress CMM inspection report software.

    Grade zero granite table 36” x 24”.

    Tesa Micro-Hite plus M350 Digital Height Gauge.

    Starrett HE400 Optical Profile Projector.

    Laser Micrometer.

    Surface Finish Tester.

    Full Range of Digital Inspection Equipment.

    Thread Gauges Namas Calibrated.

    Range of Special Gauges and Equipment.

    SPC Records.

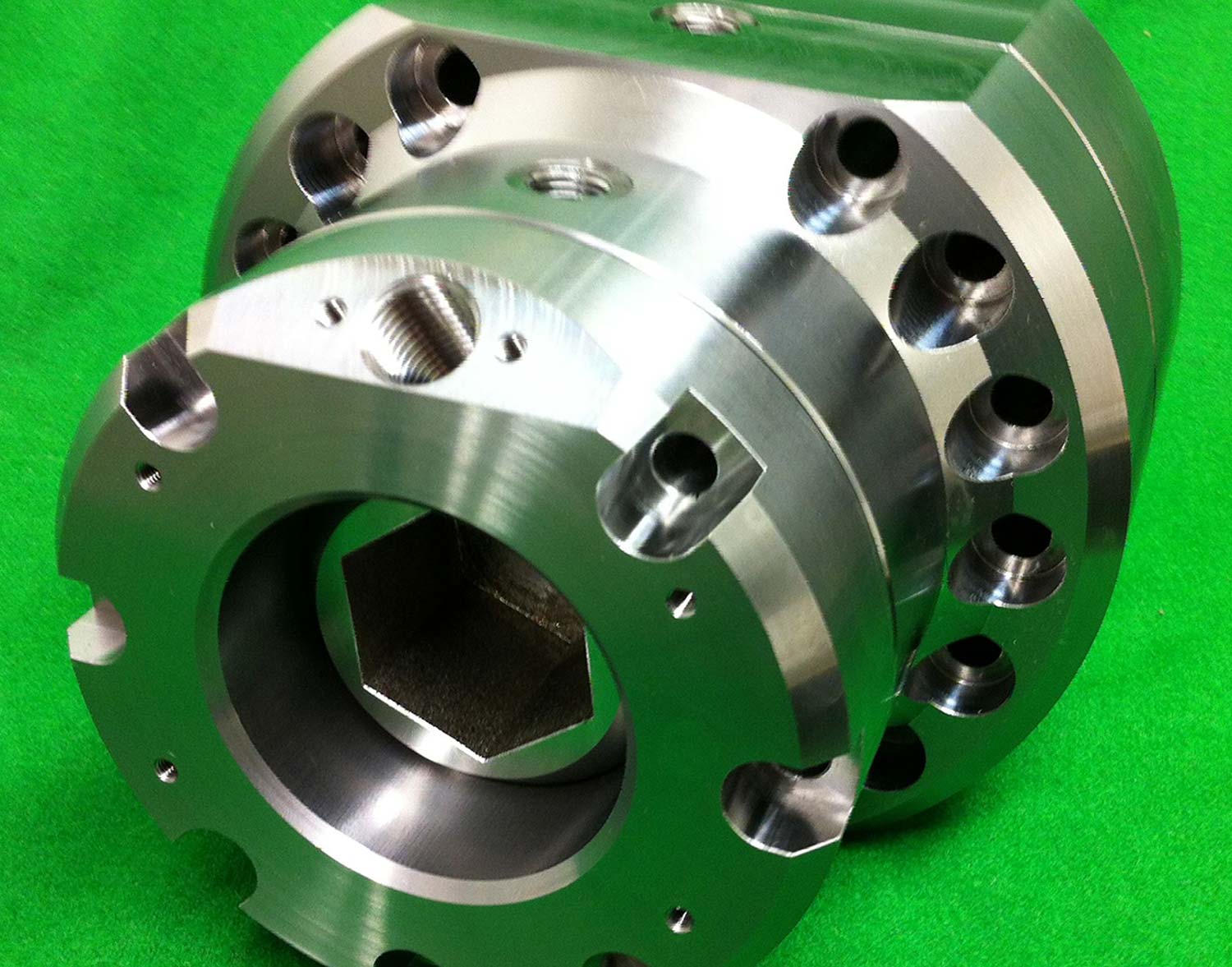

  • Assembly Facilities

    Custom built clean room, fully kitted out to take on any small to medium mechanical assemblies.

  • Workshop Inspection

    Tesa Micro-Hite plus M350 Digital Height Gauge.



    Grade zero granite table 18” x 18”.

  • Part Marking Facility

    Various pantograph engraving machines for part marking, radially or flat on all types of materials.
